Zimmer-Fernsehantenne 1130 ZAV 2-21 W

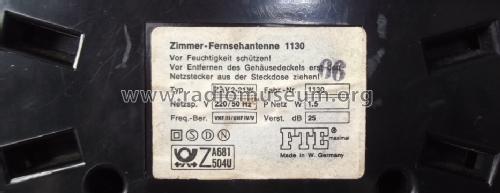

Zimmer-Fernsehantenne 1130 ZAV 2-21 W; FTE Maximal; Ober- (ID = 1080614) Antenna Zimmer-Fernsehantenne 1130 ZAV 2-21 W; FTE Maximal; Ober- (ID = 1080944) Antenna
Zimmer-Fernsehantenne 1130 ZAV 2-21 W; FTE Maximal; Ober- (ID = 1080945) Antenna
Use red slider bar for more.
Zimmer-Fernsehantenne 1130 ZAV 2-21 W; FTE Maximal; Ober- (ID = 1080614) Antenna
FTE Maximal; Ober-: Zimmer-Fernsehantenne 1130 ZAV 2-21 W [Antenna] ID = 1080614 933x763
Select picture or schematic to display from thumbnails on the right and click for download.
For model Zimmer-Fernsehantenne 1130 ZAV 2-21 W, FTE Maximal; Ober-Mörlen

Country:  Germany
Manufacturer / Brand:  FTE Maximal; Ober-Mörlen
Year: 1975 ?? Category: Antenna (Aerial) or Coupler
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Radio Frequency Amplification only
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Zimmer-Fernsehantenne 1130 ZAV 2-21 W - FTE Maximal; Ober-Mörlen
Material Special material, described in the notes.
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 370 x 330 x 340 mm / 14.6 x 13 x 13.4 inch
Notes Zimmerantenne für VHF Band 3 / UHF Band 4 und Band 5, mit Antennenverstärker: 25dB. Material: Plastik und Metall. Steckbare Stöpsel für Positionsmarkierung.

Model page created by Siegmar Mey. See "Data change" for further contributors.



All listed radios etc. from FTE Maximal; Ober-Mörlen
Here you find 14 models, 14 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
