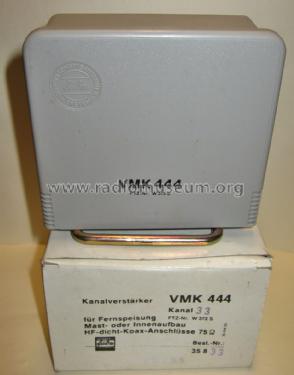

Selektiver Kanalverstärker VMK444
Fuba, Hans Kolbe; Bad Salzdetfurth
- Country
- Germany
- Manufacturer / Brand
- Fuba, Hans Kolbe; Bad Salzdetfurth
- Year
- 1990 ??
- Category
- RF (Radio Frequency-) Amplifier
- Radiomuseum.org ID
- 246357

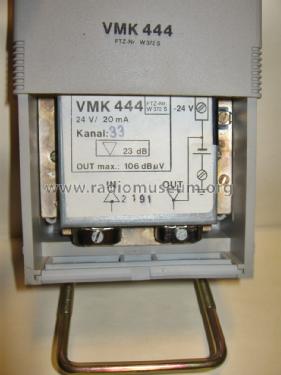

Kanalverstärker-Variante für Kanal 33
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Radio Frequency Amplification only
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit. / 24 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Selektiver Kanalverstärker VMK444 - Fuba, Hans Kolbe; Bad
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 101 x 107 x 67 mm / 4 x 4.2 x 2.6 inch
- Notes
-
Selektiver Kanal-Verstärker für einen Kanal im Bereich IV (470-622 MHz); Verstärkung: 23 dB; max. Spannung am Ausgang: 200 mV; max. Ausgangspegel: 106 dBµV; Rauschmaß: 4,3 dB; Stromaufnahme: 20 mA; Mast- oder Wandmontagemöglichkeit.
- Net weight (2.2 lb = 1 kg)
- 0.382 kg / 0 lb 13.5 oz (0.841 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
