Wealth Six Transistor FT-646

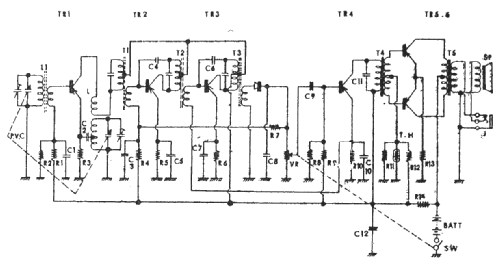

Wealth Six Transistor FT-646; Funai Electric Co., (ID = 1483492) Radio
Wealth Six Transistor FT-646; Funai Electric Co., (ID = 1483387) Radio Wealth Six Transistor FT-646; Funai Electric Co., (ID = 1483388) Radio
Wealth Six Transistor FT-646; Funai Electric Co., (ID = 1483389) Radio Wealth Six Transistor FT-646; Funai Electric Co., (ID = 1483390) Radio
Wealth Six Transistor FT-646; Funai Electric Co., (ID = 1483391) Radio
Use red slider bar for more.

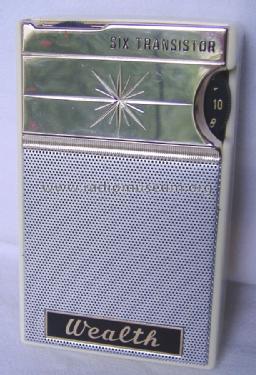

Wealth Six Transistor FT-646; Funai Electric Co., (ID = 1483387) Radio
Funai Electric Co.,: Wealth Six Transistor FT-646 [Radio] ID = 1483387 616x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wealth Six Transistor FT-646, Funai Electric Co., Ltd.; Osaka

Country:  Japan
Manufacturer / Brand:  Funai Electric Co., Ltd.; Osaka
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6LR61: 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Wealth Six Transistor FT-646 - Funai Electric Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 68 x 108 x 32 mm / 2.7 x 4.3 x 1.3 inch
Notes

Similar to Twen-Tone FT-646.

Net weight (2.2 lb = 1 kg) 0.185 kg / 0 lb 6.5 oz (0.407 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
