MD30-2

MD30-2; Funkberater Berlin- (ID = 1661095) Microphone/PU
MD30-2; Funkberater Berlin- (ID = 57384) Microphone/PU MD30-2; Funkberater Berlin- (ID = 57385) Microphone/PU
MD30-2; Funkberater Berlin- (ID = 57386) Microphone/PU MD30-2; Funkberater Berlin- (ID = 495214) Microphone/PU
MD30-2; Funkberater Berlin- (ID = 495215) Microphone/PU MD30-2; Funkberater Berlin- (ID = 495216) Microphone/PU
MD30-2; Funkberater Berlin- (ID = 495218) Microphone/PU MD30-2; Funkberater Berlin- (ID = 1634440) Microphone/PU
MD30-2; Funkberater Berlin- (ID = 1658426) Microphone/PU
Use red slider bar for more.
MD30-2; Funkberater Berlin- (ID = 57384) Microphone/PU
Funkberater Berlin-: MD30-2 [Microphone/PU] ID = 57384 814x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model MD30-2, Funkberater Berlin-Pankow; PGH (Ostd):

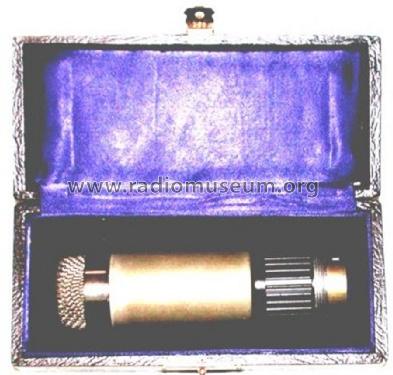

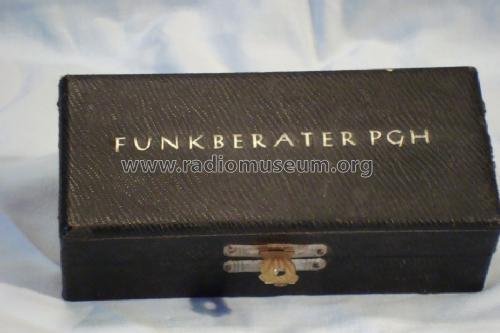

Mikrofon MD 30-2 von PGH Funkberater aus eigener Sammlung

Country:  Germany
Manufacturer / Brand:  Funkberater Berlin-Pankow; PGH (Ostd)
Year: 1970 Category: Microphone or Pick-up element
Details
Power type and voltage No Power needed
Loudspeaker
Power out
from Radiomuseum.org Model: MD30-2 - Funkberater Berlin-Pankow; PGH
Material Metal case
Dimensions (WHD) 30 x 110 x 30 mm / 1.2 x 4.3 x 1.2 inch
Notes

Dynamisches Mikrofon, Kugelcharakteristik. Anschluß durch verschraubbaren 3-pol. Tuchel-Stecker (groß).

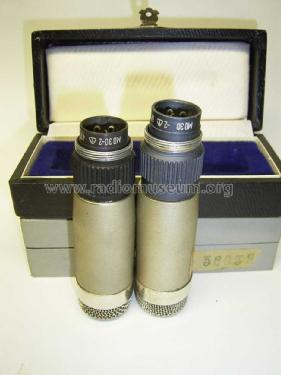

Das Mikrofon wurde mit 2 unterschiedlich langen Tuchel-Anschlusssteckern produziert.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Werner Raacke. See "Data change" for further contributors.
