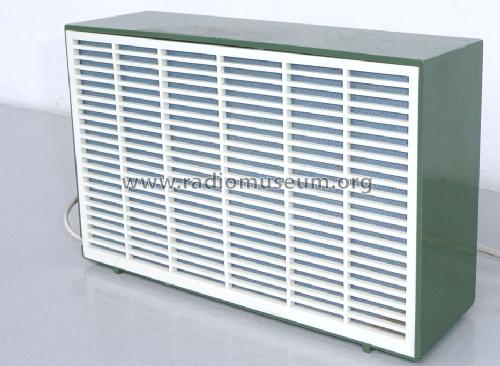

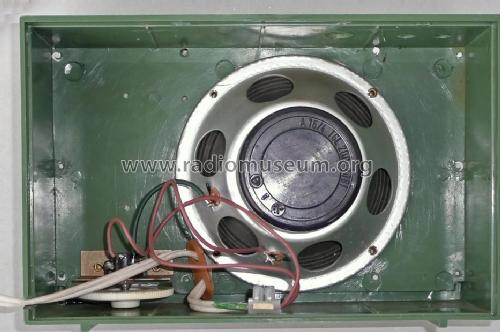

Kurs TL2; Funktechnik Leipzig, (ID = 1032995) Speaker-P Kurs TL2; Funktechnik Leipzig, (ID = 1032996) Speaker-P
Kurs TL2; Funktechnik Leipzig, (ID = 1032997) Speaker-P Kurs TL2; Funktechnik Leipzig, (ID = 135223) Speaker-P
Kurs TL2; Funktechnik Leipzig, (ID = 1032998) Speaker-P Kurs TL2; Funktechnik Leipzig, (ID = 1263643) Speaker-P
Kurs TL2; Funktechnik Leipzig, (ID = 1263644) Speaker-P Kurs TL2; Funktechnik Leipzig, (ID = 1263645) Speaker-P
Kurs TL2; Funktechnik Leipzig, (ID = 1263646) Speaker-P
Use red slider bar for more.
Kurs TL2; Funktechnik Leipzig, (ID = 1032995) Speaker-P
Funktechnik Leipzig,: Kurs TL2 [Speaker-P] ID = 1032995 933x619
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kurs TL2, Funktechnik Leipzig, PGH; Leipzig

Country:  Germany
Manufacturer / Brand:  Funktechnik Leipzig, PGH; Leipzig
Brand

Stein
Year: 1966–1975 ? Category: Loudspeaker, headphone or earphone
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Kurs TL2 - Funktechnik Leipzig, PGH;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 230 x 150 x 70 mm / 9.1 x 5.9 x 2.8 inch
Notes Frequenzbereich 80...13000 Hz ± 10 dB, 5 Ohm; Lautstärkeregler eingebaut.
Net weight (2.2 lb = 1 kg) 0.780 kg / 1 lb 11.5 oz (1.718 lb)
Price in first year of sale 44.00 DM
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.



All listed radios etc. from Funktechnik Leipzig, PGH; Leipzig
Here you find 21 models, 21 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
