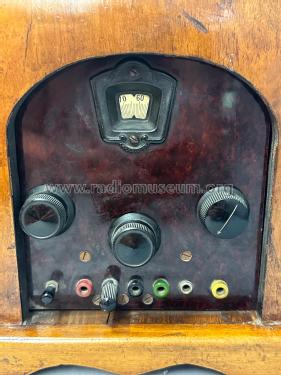

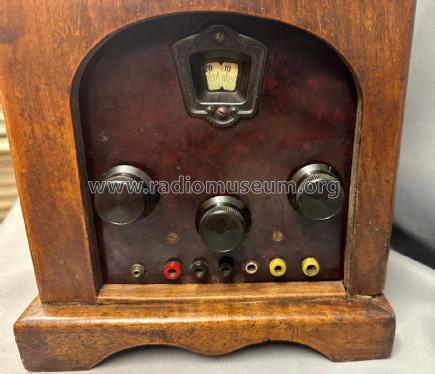

Funktophon 1932 Überland W
Funkton, Rob.Zach & L. Pileski; Wien
- Country
- Austria
- Manufacturer / Brand
- Funkton, Rob.Zach & L. Pileski; Wien
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8531
-
- Brand: Zach, Robert bzw. R. Zach & L. Pileski, Wien

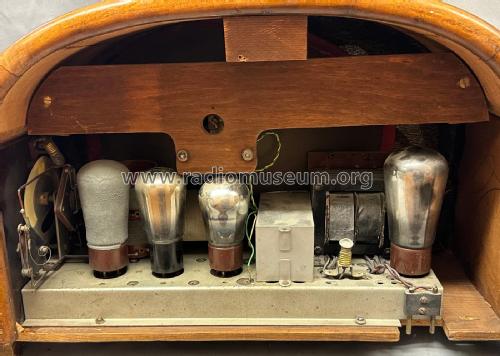

- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material

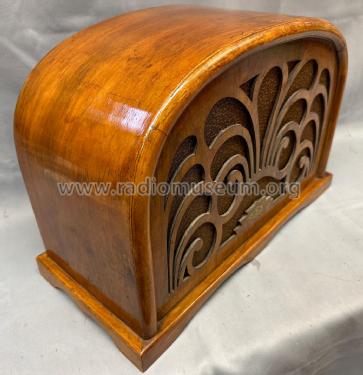

- Wooden case
- from Radiomuseum.org
- Model: Funktophon 1932 Überland W - Funkton, Rob.Zach & L. Pileski
- Shape
- Tablemodel, low profile (big size).
- Notes
- Laubsägearbeiten [RA3202B]
- Price in first year of sale
- 265.00 öS
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Radiowelt, Wien (RW, 51) (3108B)
