Universal-Zählersystem S-2201.000
Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
- Country
- Germany
- Manufacturer / Brand
- Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
- Year
- 1978 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 164518
-
- Brand: FWE
Titelseite Systemdokumentation, August 1978.

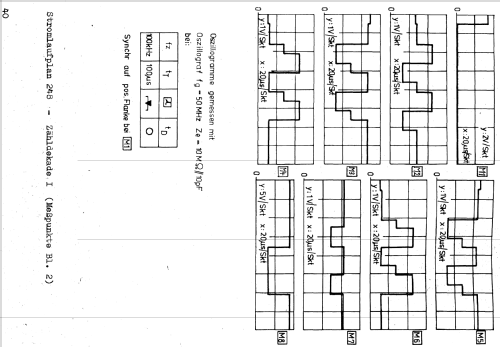

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Universal-Zählersystem S-2201.000 - Funkwerk Erfurt, VEB, RFT Ostd
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 542 x 118 x 459 mm / 21.3 x 4.6 x 18.1 inch
- Notes
- Das Universal-Zählersystem besteht aus dem Grundgerät Zähler S-2201.010 und Einschubmodulen, wie Verstärker 10 MHz S-2201.020 und Verstärker S-2201.030.
- Net weight (2.2 lb = 1 kg)
- 20 kg / 44 lb 0.8 oz (44.053 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Till Krüger. See "Data change" for further contributors.
