• Year
  • 1984
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 190764
    • Brand: FWE

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

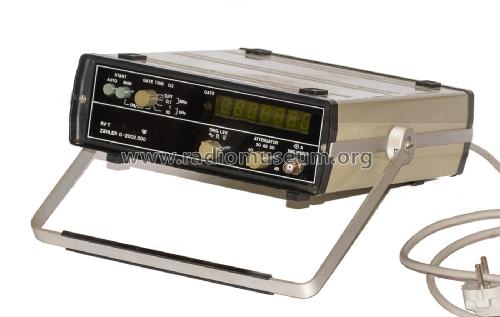

  • Model: Frequenzzähler G-2002.500 - Funkwerk Erfurt, VEB, RFT Ostd
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 275 x 80 x 302 mm / 10.8 x 3.1 x 11.9 inch
  • Notes
  • Frequenzzähler 1Hz bis 125 MHz, 10mV Empfindlichkeit, Triggerpegel einstellbar, oder TTL-Pegel, Torzeiten 10ms - 1s, 7stellige Anzeige, Eingangswid. 1MOhm/25pF, Zeitbasis 10MHz.
  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Andreas Reuther. See "Data change" for further contributors.
