Röhrenvoltmeter 116/48

Röhrenvoltmeter 116/48; Funkwerk Erfurt, VEB (ID = 305264) Equipment Röhrenvoltmeter 116/48; Funkwerk Erfurt, VEB (ID = 305265) Equipment

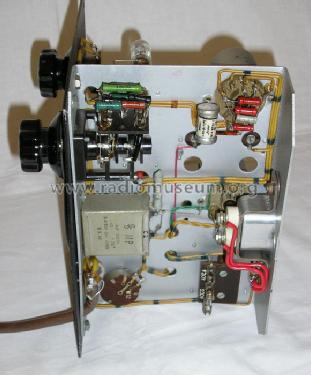

Röhrenvoltmeter 116/48; Funkwerk Erfurt, VEB (ID = 305266) Equipment Röhrenvoltmeter 116/48; Funkwerk Erfurt, VEB (ID = 305267) Equipment
Use red slider bar for more.
Röhrenvoltmeter 116/48; Funkwerk Erfurt, VEB (ID = 305264) Equipment
Funkwerk Erfurt, VEB: Röhrenvoltmeter 116/48 [Equipment] ID = 305264 894x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Röhrenvoltmeter 116/48, Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH

Country:  Germany
Manufacturer / Brand:  Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
Brand

FWE
Year: 1948 ? Category: Service- or Lab Equipment
Valves / Tubes 3: EZ11 EF12 RV12P2000 T2742e T2742e
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Röhrenvoltmeter 116/48 - Funkwerk Erfurt, VEB, RFT Ostd
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 230 x 200 x 155 mm / 9.1 x 7.9 x 6.1 inch
Notes Röhrenvoltmeter mit 3 Meßbereichen (2/10/50 V) im Frequenzbereich 20 Hz···50 MHz. Eisenwasserstoff-Widerstand EW 3-9V/0,2A für Röhrenheizung.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)

Model page created by Andreas Hamel. See "Data change" for further contributors.
