Universalzähler 3514a

Universalzähler 3514a; Funkwerk Erfurt, VEB (ID = 414838) Equipment Universalzähler 3514a; Funkwerk Erfurt, VEB (ID = 414839) Equipment

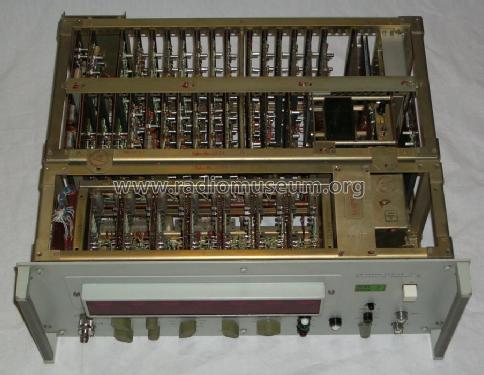

Universalzähler 3514a; Funkwerk Erfurt, VEB (ID = 414840) Equipment
Use red slider bar for more.
Universalzähler 3514a; Funkwerk Erfurt, VEB (ID = 414838) Equipment
Funkwerk Erfurt, VEB: Universalzähler 3514a [Equipment] ID = 414838 933x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universalzähler 3514a, Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH

Country:  Germany
Manufacturer / Brand:  Funkwerk Erfurt, VEB, RFT (Ostd.) - vorm. Telefunken GmbH
Brand

FWE
Year: 1974 Category: Service- or Lab Equipment
Valves / Tubes 7: Z5700M Z5700M Z5700M Z5700M Z5700M Z5700M Z5700M
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universalzähler 3514a - Funkwerk Erfurt, VEB, RFT Ostd
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 220 x 450 mm / 20.9 x 8.7 x 17.7 inch
Notes Universalzähler für: Frequenzmessung 0..1,5 MHz; Periodendauermessung 0..100 kHz; Zeitintervallmessung und Frequenzverhältnismessung.
Torzeiterzeugung: 1-MHz-Quarz im Thermostat.
Net weight (2.2 lb = 1 kg) 19.1 kg / 42 lb 1.1 oz (42.07 lb)

Model page created by Andreas Hamel. See "Data change" for further contributors.
