• Year
  • 1975
  • Category
  • Commercial Receiver (may include amateur bands)
  • Radiomuseum.org ID
  • 73155

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 12/24/127/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

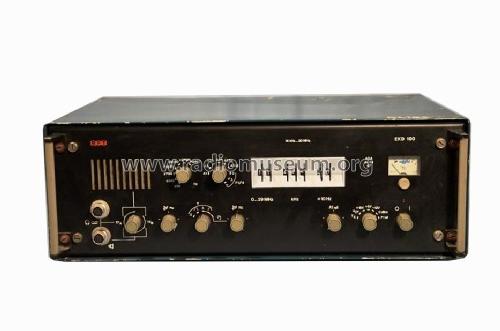

  • Model: EKD100 - Funkwerk Köpenick, VEB, RFT;
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 540 x 198 x 395 mm / 21.3 x 7.8 x 15.6 inch
  • Notes
  • Hochwertiger Empfänger für den Bereich 14 kHz bis 30 MHz; diverse mechanische Filter schaltbar; automat. Preselektor; Fernschreibdekoder eingebaut. Frequenzeinstellung: dekadisch in 10 Hz-Schritten, voll durchstimmbar oder Eingabe über Tastenfeld. Empfangsmodi: A1, A2, A2J, A2A, A2H, A3, A3J, A3A, A3H, A3Bj, A3Ba, A4, A4J, A4A, A7J, A7A, A9J, A9A, F1, F4.
  • Net weight (2.2 lb = 1 kg)
  • 24 kg / 52 lb 13.8 oz (52.863 lb)
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
