EKV11

Funkwerk Köpenick, VEB, RFT; Berlin-Köpenick (Ostd.)

Data
Forum
Pictures
Collections

  • Year
  • 1971 ?
  • Category
  • Commercial Receiver (may include amateur bands)
  • Radiomuseum.org ID
  • 73163

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • B7S2
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 24/110/220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

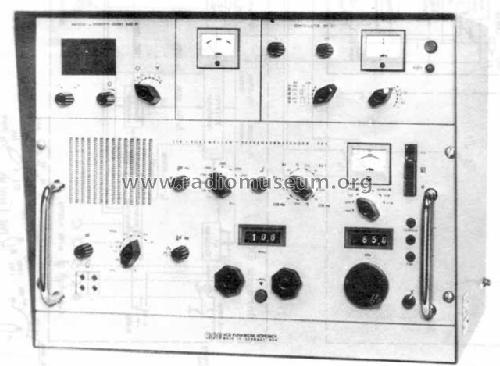

  • Model: EKV11 - Funkwerk Köpenick, VEB, RFT;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 530 x 410 x 410 mm / 20.9 x 16.1 x 16.1 inch
  • Notes
  • Hochwertiger Empfänger (3fach-Super) mit PLL. Das Gerät ist volltransistoriert ( keine IC´s ); Empfangsbereich: 14-535kHz und 1,6-30MHz; ZF: 38,3 MHz, 3,2 MHz, 200 kHz; mechan. Digitalanzeige auf 100 Hz genau; Empfangsmodi: AM / SSB. Eingebauter Quarzofen (75°C) für den Mutteroszillator. EKV11 bestehend aus: Grundgerät, LZ01 Langwellenzusatz, AAD02 Antennendiversity (4 Ant.-Eing.), DM011 FM-Demodulator 1 Kanal
  • Net weight (2.2 lb = 1 kg)
  • 52 kg / 114 lb 8.6 oz (114.537 lb)
  • Source of data
  • -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
