• Country
• Germany

• Manufacturer / Brand
• Funkwerk Kölleda, VEB, RFT, - vorm. Neutrowerk, Neutro-Werk (Ostd.)

• Year
• 1984

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 99929

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Power out
• 35 W (50 W max.)

• Material
• Wooden case

• from Radiomuseum.org

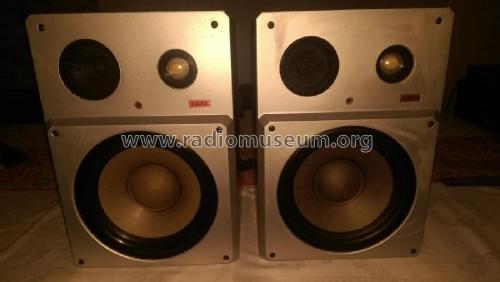

• Model: B9283 - Funkwerk Kölleda, VEB, RFT, -

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 235 x 340 x 225 mm / 9.3 x 13.4 x 8.9 inch

• Notes

• HiFi-Dreiwegebox (B9282 in optisch überarbeiteter Version); Nettovolumen 10 l, Nennlastbarkeit 35 W, Höchstbelastbarkeit 50 W, Nennscheinwiderstand 4 Ω. Übertragungsbereich: 50...20.000 Hz. Filter-Trennfrequenzen: 800 Hz / 7,7 kHz; Lautsprecherbestückung: Tieftonlautsprecher L2921, Mitteltonlautsprecher L1714, Hochtonlautsprecher L9801.

• Net weight (2.2 lb = 1 kg)
• 8.8 kg / 19 lb 6.1 oz (19.383 lb)

• Price in first year of sale
• 450.00 Mark

• Mentioned in
• -- Original prospect or advert (Sortimentskatalog Elektroakustik (DDR, 1987))

• Literature/Schematics (1)
• Zeitschrift "Funkamateur" 4/1985

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
