Kompaktbox B9141

Kompaktbox B9141; Funkwerk Kölleda, (ID = 1241026) Speaker-P

Kompaktbox B9141; Funkwerk Kölleda, (ID = 1241027) Speaker-P
Kompaktbox B9141; Funkwerk Kölleda, (ID = 1032642) Speaker-P Kompaktbox B9141; Funkwerk Kölleda, (ID = 1153562) Speaker-P

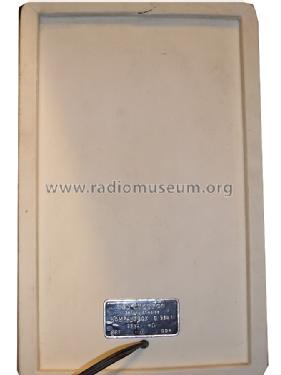

Kompaktbox B9141; Funkwerk Kölleda, (ID = 1153563) Speaker-P Kompaktbox B9141; Funkwerk Kölleda, (ID = 2059215) Speaker-P
Use red slider bar for more.
Kompaktbox B9141; Funkwerk Kölleda, (ID = 1032642) Speaker-P
Funkwerk Kölleda,: Kompaktbox B9141 [Speaker-P] ID = 1032642 733x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kompaktbox B9141, Funkwerk Kölleda, VEB, RFT, - vorm. Neutrowerk, Neutro-Werk (Ostd.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Kölleda, VEB, RFT, - vorm. Neutrowerk, Neutro-Werk (Ostd.)
Year: 1978 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out 25 W (unknown quality)
from Radiomuseum.org Model: Kompaktbox B9141 - Funkwerk Kölleda, VEB, RFT, -
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 170 x 270 x 155 mm / 6.7 x 10.6 x 6.1 inch
Notes

2-Wege-Kompaktbox B9141 vom Funkwerk Kölleda, hergestellt auch von Statron und Stern-Radio Rochlitz.
Volumen: 4 l; Nennbelastbarkeit: 25 W an 4 Ω, Weichentrennfrequenz 2,4 kHz, 70...16.000 Hz Frequenzbereich. Anschlusskabel 3,9 m mit DIN-Lautsprecherstecker. Bestückung:
1x L2432, 20VA, 4 Ohm
1x L9801, 15 VA, 4 Ohm

Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Price in first year of sale 210.00 Mark
Source of data -- Collector info (Sammler)
Mentioned in radio fernsehen elektronik 1981, H.11
Literature/Schematics (1) Sortimentskatalog Elektroakustik (DDR, 1979)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
