Lautsprecher-Chassis L5914

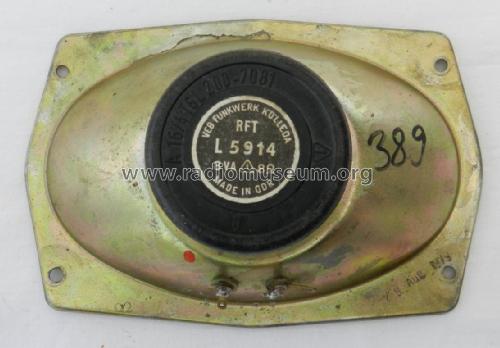

Lautsprecher-Chassis L5914; Funkwerk Kölleda, (ID = 2369638) Speaker-P Lautsprecher-Chassis L5914; Funkwerk Kölleda, (ID = 2369636) Speaker-P
Lautsprecher-Chassis L5914; Funkwerk Kölleda, (ID = 1167673) Speaker-P Lautsprecher-Chassis L5914; Funkwerk Kölleda, (ID = 1167674) Speaker-P

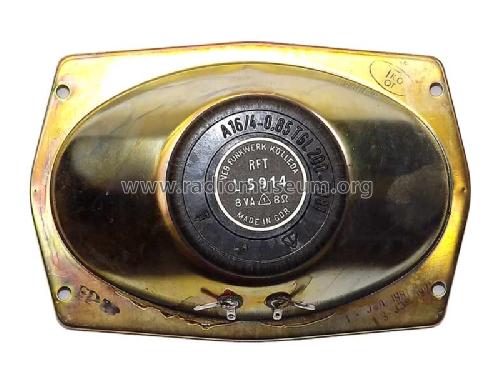

Lautsprecher-Chassis L5914; Funkwerk Kölleda, (ID = 1167675) Speaker-P Lautsprecher-Chassis L5914; Funkwerk Kölleda, (ID = 1412207) Speaker-P
Use red slider bar for more.
Lautsprecher-Chassis L5914; Funkwerk Kölleda, (ID = 2369638) Speaker-P
Funkwerk Kölleda,: Lautsprecher-Chassis L5914 [Speaker-P] ID = 2369638 1278x811
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecher-Chassis L5914, Funkwerk Kölleda, VEB, RFT, - vorm. Neutrowerk, Neutro-Werk (Ostd.)

Country:  Germany
Manufacturer / Brand:  Funkwerk Kölleda, VEB, RFT, - vorm. Neutrowerk, Neutro-Werk (Ostd.)
Year: 1970 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15.5 cm = 6.1 inch
Power out 8 W (unknown quality)
from Radiomuseum.org Model: Lautsprecher-Chassis L5914 - Funkwerk Kölleda, VEB, RFT, -
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 155 x 105 x 60 mm / 6.1 x 4.1 x 2.4 inch
Notes Hochton-Lautsprecher höherer Leistung, 8 Watt an 8 Ohm, Frequenzbereich 600-18000 Hz. Geschlossener Korb (Blech) wodurch dieser Lautsprecher im selben Gehäuse mit Tiefton-Mitten-Chassis verwendet werden kann.
Net weight (2.2 lb = 1 kg) 0.353 kg / 0 lb 12.4 oz (0.778 lb)

Model page created by Frithjof Grassmann. See "Data change" for further contributors.
