Galaxy V MK II (MK2)

Galaxy V MK II ; Galaxy Electronics, (ID = 1443658) Amat TRX

Galaxy V MK II ; Galaxy Electronics, (ID = 1443659) Amat TRX

Galaxy V MK II ; Galaxy Electronics, (ID = 1443660) Amat TRX

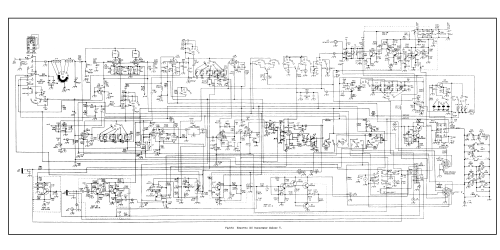

Galaxy V MK II ; Galaxy Electronics, (ID = 1443661) Amat TRX
Galaxy V MK II ; Galaxy Electronics, (ID = 617889) Amat TRX Galaxy V MK II ; Galaxy Electronics, (ID = 617891) Amat TRX

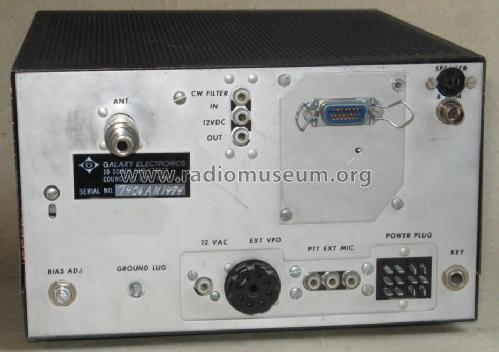

Galaxy V MK II ; Galaxy Electronics, (ID = 617758) Amat TRX Galaxy V MK II ; Galaxy Electronics, (ID = 598849) Amat TRX
Galaxy V MK II ; Galaxy Electronics, (ID = 617756) Amat TRX Galaxy V MK II ; Galaxy Electronics, (ID = 617890) Amat TRX
Galaxy V MK II ; Galaxy Electronics, (ID = 617892) Amat TRX Galaxy V MK II ; Galaxy Electronics, (ID = 617894) Amat TRX
Galaxy V MK II ; Galaxy Electronics, (ID = 2573477) Amat TRX Galaxy V MK II ; Galaxy Electronics, (ID = 2573478) Amat TRX
Use red slider bar for more.

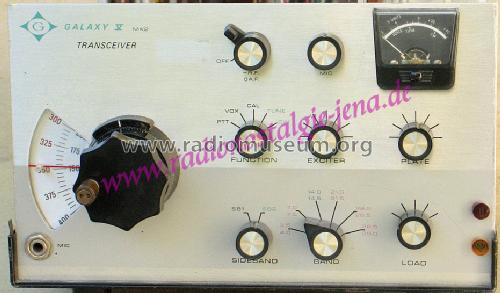

Galaxy V MK II ; Galaxy Electronics, (ID = 617889) Amat TRX
Galaxy Electronics,: Galaxy V MK II [Amat TRX] ID = 617889 931x547
Select picture or schematic to display from thumbnails on the right and click for download.
For model Galaxy V MK II (MK2), Galaxy Electronics, Council Bluffs (IA)

Country:  United States of America (USA)
Manufacturer / Brand:  Galaxy Electronics, Council Bluffs (IA)
Year: 1968 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Valves / Tubes 12: 6HF5 6HF5 6GK6 6EJ7 6KE8 12BZ6 6HG8 6EW6 12BA6 6GX6 12AT7 150C2
Semiconductors (the count is only for transistors) 16:
Main principle Superheterodyne (common)
Wave bands Short Wave (SW only)
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - This model requires external speaker(s).
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Galaxy V MK II - Galaxy Electronics, Council
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 260 x 150 x 285 mm / 10.2 x 5.9 x 11.2 inch
Notes SSB (USB/LSB), CW Transceiver.
3,5...29 MHz, in 6 Bereichen,
29...30 MHz mit Zusatzquarz.
400W PEP bei SSB, 300W bei CW.
Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)
Price in first year of sale 2'260.00 DM
Source of data - - Manufacturers Literature
Literature/Schematics (1) Bauer-Katalog, Bamberg, 1968

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Galaxy Electronics, Council Bluffs (IA)
Here you find 12 models, 12 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
