For model 05RA1-43-7901A, Gamble-Skogmo, Inc.; Minneapolis, MN

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6BA6 12AT7 6BA6 6BA6 6AL5 6AV6 6AV6 6K6GT 6K6GT 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 6 W (unknown quality)
from Radiomuseum.org Model: 05RA1-43-7901A - Gamble-Skogmo, Inc.;
Material Wooden case

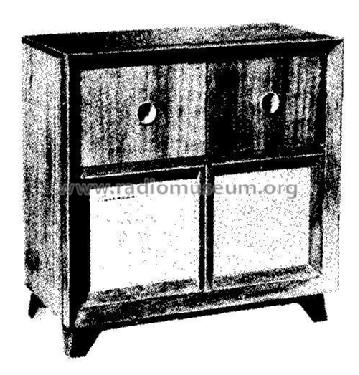

Shape Console, Lowboy (legs < 50 %).
Notes Built in loop antenna.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950
