0-556

0-556 ; Gamble-Skogmo, Inc.; (ID = 361874) Radio

0-556 ; Gamble-Skogmo, Inc.; (ID = 361875) Radio
Use red slider bar for more.
0-556 ; Gamble-Skogmo, Inc.; (ID = 361874) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1941 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1A7GT 1H5GT 1N5GT 1T5GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / 117 & 90 & 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 0-556 - Gamble-Skogmo, Inc.;
Notes Line supply is AC/DC. Built in loop antenna.
External source of data Ernst Erb

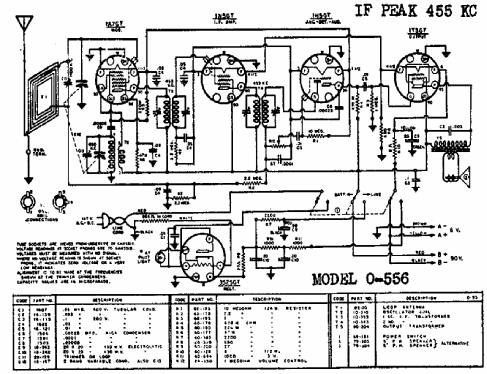

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
