Coronado 15RA37-43-9230A

Coronado 15RA37-43-9230A ; Gamble-Skogmo, Inc.; (ID = 211119) Radio

Coronado 15RA37-43-9230A ; Gamble-Skogmo, Inc.; (ID = 211120) Radio

Coronado 15RA37-43-9230A ; Gamble-Skogmo, Inc.; (ID = 471855) Radio

Coronado 15RA37-43-9230A ; Gamble-Skogmo, Inc.; (ID = 471858) Radio

Coronado 15RA37-43-9230A ; Gamble-Skogmo, Inc.; (ID = 471859) Radio

Coronado 15RA37-43-9230A ; Gamble-Skogmo, Inc.; (ID = 471860) Radio
Coronado 15RA37-43-9230A ; Gamble-Skogmo, Inc.; (ID = 471853) Radio
Use red slider bar for more.
Coronado 15RA37-43-9230A ; Gamble-Skogmo, Inc.; (ID = 471853) Radio
Gamble-Skogmo, Inc.;: Coronado 15RA37-43-9230A [Radio] ID = 471853 567x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coronado 15RA37-43-9230A, Gamble-Skogmo, Inc.; Minneapolis, MN:

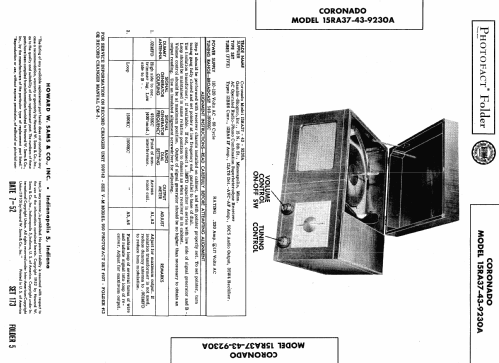

SAMS Photofact reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Coronado 15RA37-43-9230A - Gamble-Skogmo, Inc.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes The Coronado model 15RA37-43-9230A made by Gamble-Skogno, Inc. is an AC operated radio-phono combination with a loop antenna.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 23 (last), covering up to 1954
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 7-52, set 173, folder 5)
