Coronado 34-BT

Coronado 34-BT ; Gamble-Skogmo, Inc.; (ID = 363559) Radio

Coronado 34-BT ; Gamble-Skogmo, Inc.; (ID = 363560) Radio
Coronado 34-BT ; Gamble-Skogmo, Inc.; (ID = 1600137) Radio
Use red slider bar for more.
Coronado 34-BT ; Gamble-Skogmo, Inc.; (ID = 1600137) Radio
Gamble-Skogmo, Inc.;: Coronado 34-BT [Radio] ID = 1600137 933x1186
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coronado 34-BT, Gamble-Skogmo, Inc.; Minneapolis, MN:
Image courtesy of Mark V. Stein for Radiomuseum.org use only. Cathedral and Tombstone Radios.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1936 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1C6 34 1B5 38
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Coronado 34-BT - Gamble-Skogmo, Inc.;
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Notes

Sync.vibrator for +B.

Stein "Cathedral & Tombstone Radios" lists 5 tubes and 1 band for this model.

External source of data Ernst Erb

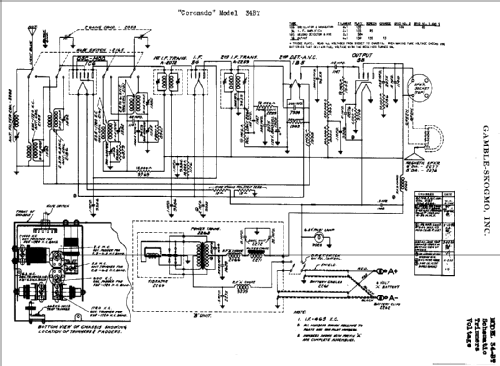

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Literature/Schematics (1) Cathedral & Tombstone Radios (page 78.)
