Coronado 43-8180

Coronado 43-8180 ; Gamble-Skogmo, Inc.; (ID = 364987) Radio

Coronado 43-8180 ; Gamble-Skogmo, Inc.; (ID = 364988) Radio

Coronado 43-8180 ; Gamble-Skogmo, Inc.; (ID = 364989) Radio

Coronado 43-8180 ; Gamble-Skogmo, Inc.; (ID = 515722) Radio

Coronado 43-8180 ; Gamble-Skogmo, Inc.; (ID = 515723) Radio

Coronado 43-8180 ; Gamble-Skogmo, Inc.; (ID = 515725) Radio

Coronado 43-8180 ; Gamble-Skogmo, Inc.; (ID = 515727) Radio
Coronado 43-8180 ; Gamble-Skogmo, Inc.; (ID = 515241) Radio
Use red slider bar for more.
Coronado 43-8180 ; Gamble-Skogmo, Inc.; (ID = 515241) Radio
Gamble-Skogmo, Inc.;: Coronado 43-8180 [Radio] ID = 515241 759x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coronado 43-8180, Gamble-Skogmo, Inc.; Minneapolis, MN:
Sams photofact.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1946 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Coronado 43-8180 - Gamble-Skogmo, Inc.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Built in loop antenna.
External source of data Ernst Erb

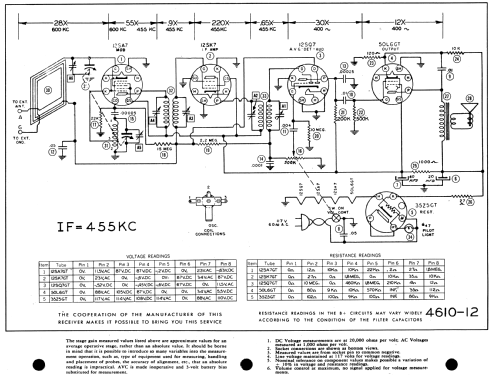

Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Mentioned in Collector's Guide to Antique Radios (7th Edition) (see under Coronado)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 10, Folder 4610-12)


All listed radios etc. from Gamble-Skogmo, Inc.; Minneapolis, MN
Here you find 597 models, 282 with images and 540 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
