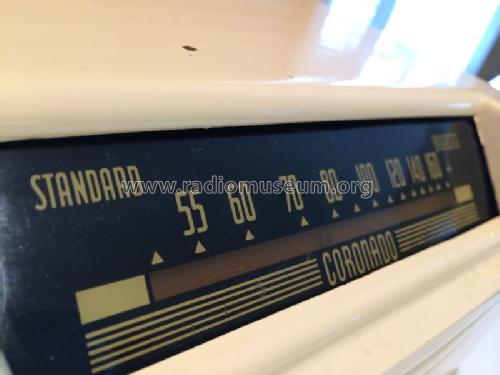

Coronado 43-8241 ; Gamble-Skogmo, Inc.; (ID = 1676648) Radio Coronado 43-8241 ; Gamble-Skogmo, Inc.; (ID = 1676649) Radio
Use red slider bar for more.
Coronado 43-8241 ; Gamble-Skogmo, Inc.; (ID = 1676642) Radio
Gamble-Skogmo, Inc.;: Coronado 43-8241 [Radio] ID = 1676642 600x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coronado 43-8241, Gamble-Skogmo, Inc.; Minneapolis, MN

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Coronado 43-8241 - Gamble-Skogmo, Inc.;
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Notes The Coronado model 43-8241 is an AC-DC Operated Superheterodyne Receiver - Self Contained Loop Antenna.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date: Jan 1947, Set 12, Folder 472-8)
