For model Coronado 43-8352, Gamble-Skogmo, Inc.; Minneapolis, MN:
Picture Courtesy Of EBAY User: hackenstein9

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SA7 12SK7 or 12SK7GT 12SK7 or 12SK7GT 12SQ7 35L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.9 W (unknown quality)
from Radiomuseum.org Model: Coronado 43-8352 - Gamble-Skogmo, Inc.;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes The Coronado model 43-8352 is an AC-DC Superheterodyne - Self Contained Loop Antenna.
4" x 6" PM elliptical speaker.
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 17 = 1948 and before

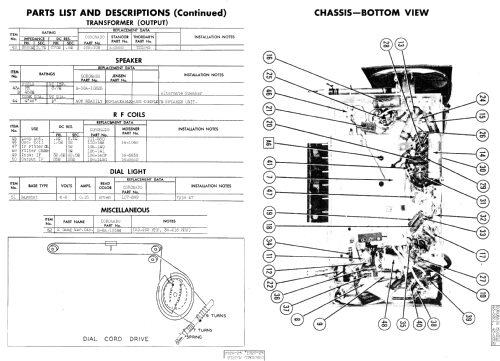

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date: Jan 1947, Set 12, Folder 472-9)
