For model Coronado 43-8353, Gamble-Skogmo, Inc.; Minneapolis, MN:
Ebay 260639417825

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7GT 12SA7GT 12SK7GT 12SQ7GT 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.65 W (unknown quality)
from Radiomuseum.org Model: Coronado 43-8353 - Gamble-Skogmo, Inc.;
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes

Self Contained Loop Antenna.
4" x 6" PM elliptical speaker.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Beitman Radio Diagrams Vol. 8, 1948

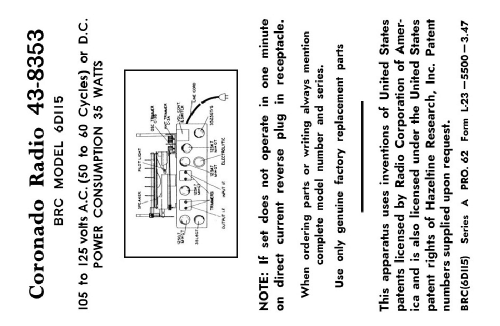

Literature/Schematics (1) Rider's Perpetual, Volume 22 = covering 1951
