650A

650A ; Gamble-Skogmo, Inc.; (ID = 370715) Radio
650A ; Gamble-Skogmo, Inc.; (ID = 877241) Radio 650A ; Gamble-Skogmo, Inc.; (ID = 877242) Radio
650A ; Gamble-Skogmo, Inc.; (ID = 2439746) Radio
Use red slider bar for more.
650A ; Gamble-Skogmo, Inc.; (ID = 877241) Radio
Gamble-Skogmo, Inc.;: 650A [Radio] ID = 877241 900x666
Select picture or schematic to display from thumbnails on the right and click for download.
For model 650A, Gamble-Skogmo, Inc.; Minneapolis, MN:

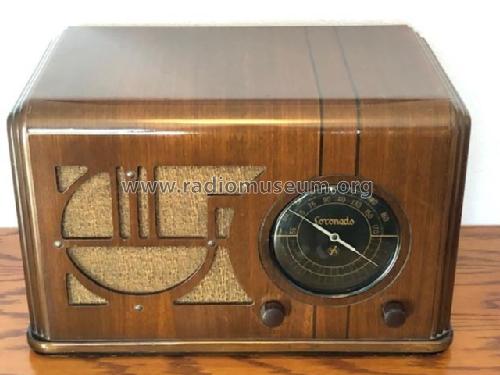

Coronado 650 Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1937 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1C6 1A4 30 1A4 950 950
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 650A - Gamble-Skogmo, Inc.;
Dimensions (WHD) 18 x 10.5 x 10.75 inch / 457 x 267 x 273 mm
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
