650C

650C ; Gamble-Skogmo, Inc.; (ID = 370759) Radio
Use red slider bar for more.
650C ; Gamble-Skogmo, Inc.; (ID = 370759) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1937 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1C6 or 1A6 1A4 30 1A4 950 950
Main principle Superheterodyne (common); ZF/IF 456 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 650C - Gamble-Skogmo, Inc.;

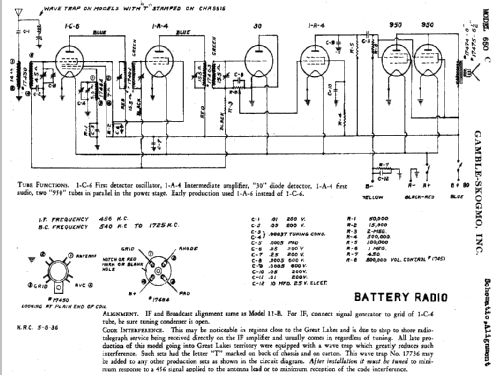

Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before

Model page created by Dirk Taekels. See "Data change" for further contributors.
