906

906 ; Gamble-Skogmo, Inc.; (ID = 376242) Radio
906 ; Gamble-Skogmo, Inc.; (ID = 1515344) Radio 906 ; Gamble-Skogmo, Inc.; (ID = 1515346) Radio
Use red slider bar for more.
906 ; Gamble-Skogmo, Inc.; (ID = 1515344) Radio

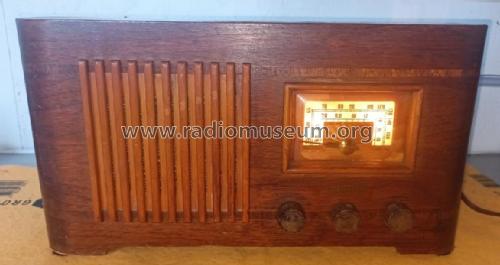

Gamble-Skogmo, Inc.;: 906 [Radio] ID = 1515344 500x283
Select picture or schematic to display from thumbnails on the right and click for download.
For model 906, Gamble-Skogmo, Inc.; Minneapolis, MN

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1941 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SK7GT 6SA7GT 6SK7GT 6SQ7GT 6K6GT 5W4GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 906 - Gamble-Skogmo, Inc.;
Notes Built in loop antenna.
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before

Model page created by Dirk Taekels. See "Data change" for further contributors.
