• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41430

• • Brand: Coronado

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BA7 6BA6 6BA6 6AL5 6AV6 6V6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 10700 & 45 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

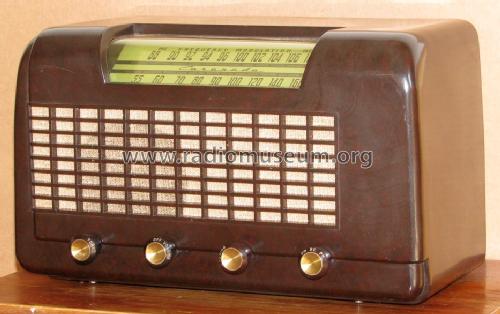

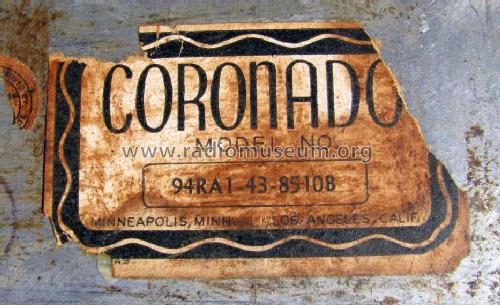

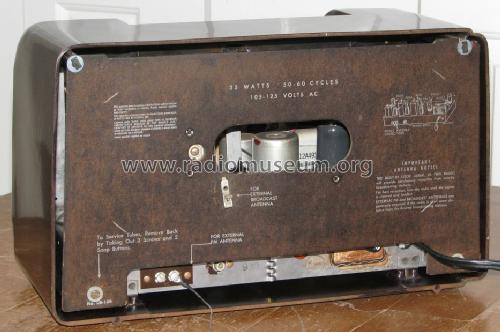

• Model: Coronado 94RA1-43-8510B - Gamble-Skogmo, Inc.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 14 x 8.7 x 7.5 inch / 356 x 221 x 191 mm

• Notes
• Built in loop antenna.

• Net weight (2.2 lb = 1 kg)
• 11 lb 0 oz (11 lb) / 4.994 kg

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 21, Copyright 1950

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 10, 1950

• Other Models

• Here you find 689 models, 322 with images and 618 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Gamble-Skogmo, Inc.; Minneapolis, MN
