Coronado 94RA33-43-8131C
Use red slider bar for more.

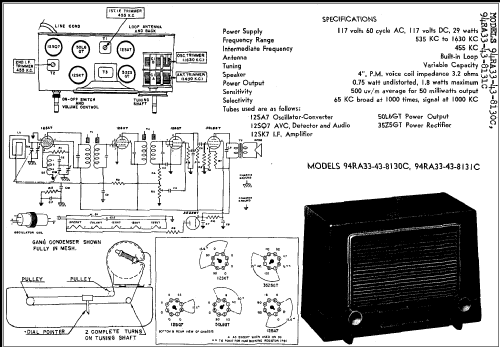

Gamble-Skogmo, Inc.;: Coronado 94RA33-43-8131C [Radio] ID = 473351 794x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Coronado | ||||
|---|---|---|---|---|---|
| Year: 1949 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT |
| Main principle | Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | AC/DC-set / 110-120 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.875 inch = 9.8 cm |
| Power out | 0.75 W (unknown quality) |
| from Radiomuseum.org | Model: Coronado 94RA33-43-8131C - Gamble-Skogmo, Inc.; |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel without push buttons, Mantel/Midget/Compact up to 14 |
| Notes | The Coronado models 94RA33-43-8130C and 94RA33-43-8131C made by Gamble-Skogmo, Inc. are AC-DC operated superheterodyne receivers with loop antenna. The number 94RA indicates first production year is 1949 (or 1948/49). |
| External source of data | Ernst Erb |
| Source of data | The Radio Collector's Directory and Price Guide 1921 - 1965 |
| Circuit diagram reference | Rider's Perpetual, Volume 20 covering 1950 |
| Literature/Schematics (1) | Photofact Folder, Howard W. SAMS (Date 1-50, set 82, folder 3) |
