C901

C901 ; Gamble-Skogmo, Inc.; (ID = 373651) Radio

C901 ; Gamble-Skogmo, Inc.; (ID = 373652) Radio

C901 ; Gamble-Skogmo, Inc.; (ID = 373653) Radio

C901 ; Gamble-Skogmo, Inc.; (ID = 373654) Radio

C901 ; Gamble-Skogmo, Inc.; (ID = 373655) Radio
Use red slider bar for more.
C901 ; Gamble-Skogmo, Inc.; (ID = 373651) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1941 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6SK7 6SA7 6SK7 6F6G 6U5 6F6G 6J5GT 6SQ7 5Y3G 6SJ7 6SJ7
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: C901 - Gamble-Skogmo, Inc.;
External source of data Ernst Erb

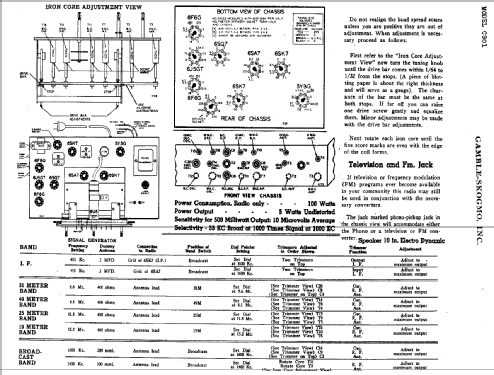

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before


All listed radios etc. from Gamble-Skogmo, Inc.; Minneapolis, MN
Here you find 658 models, 291 with images and 601 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
