Coronado 35RA33-43-8145

Coronado 35RA33-43-8145 ; Gamble-Skogmo, Inc.; (ID = 471882) Radio

Coronado 35RA33-43-8145 ; Gamble-Skogmo, Inc.; (ID = 471883) Radio

Coronado 35RA33-43-8145 ; Gamble-Skogmo, Inc.; (ID = 471885) Radio

Coronado 35RA33-43-8145 ; Gamble-Skogmo, Inc.; (ID = 471887) Radio
Coronado 35RA33-43-8145 ; Gamble-Skogmo, Inc.; (ID = 471881) Radio
Use red slider bar for more.
Coronado 35RA33-43-8145 ; Gamble-Skogmo, Inc.; (ID = 471881) Radio
Gamble-Skogmo, Inc.;: Coronado 35RA33-43-8145 [Radio] ID = 471881 873x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coronado 35RA33-43-8145, Gamble-Skogmo, Inc.; Minneapolis, MN:
SAMS Photofact reference picture.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 or 12AT6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Coronado 35RA33-43-8145 - Gamble-Skogmo, Inc.;
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes The Coronado model 35RA33-43-8145 made by Gamble-Skogmo, Inc. is an AC-DC operated AM superheterodyne receiver.

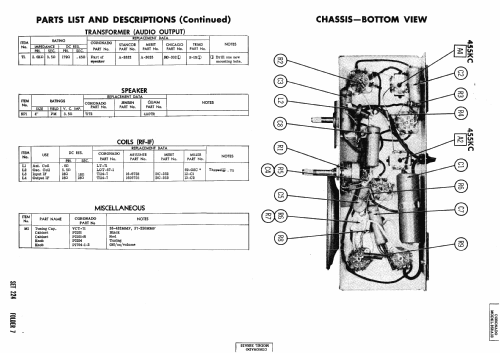

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-53, set 224, folder 7)

Model page created by Ernst Erb. See "Data change" for further contributors.
