• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222769

• • Brand: Coronado

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AT6 35C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

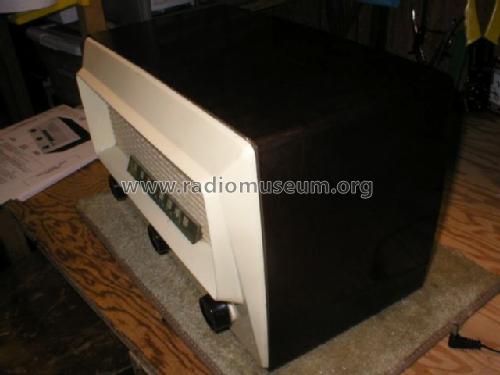

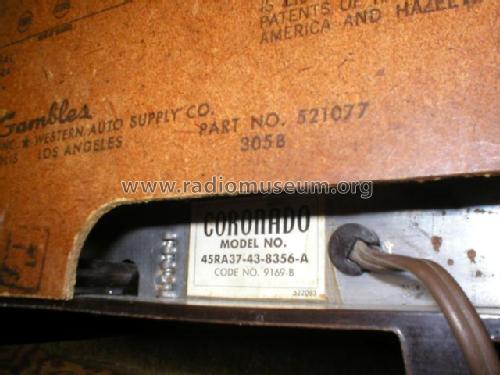

• Model: Coronado Adventurer 45RA37-43-8356A - Gamble-Skogmo, Inc.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14 x 8 x 9 inch / 356 x 203 x 229 mm

• Notes
• This model is similar to 35RA37-43-8355 shown in Sams Photofact Set 225 folder 9 dated 12-53 according to Sam's index. Suffix "A" see Servicer 447.

• Mentioned in
• Photofact Folder, Howard W. SAMS (set 225, folder 9, dat.12-53)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Servicer 447)

• Author
• Model page created by Larry Anderson. See "Data change" for further contributors.

• Other Models

• Here you find 689 models, 322 with images and 618 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
