• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225399

• • Brand: Coronado

• Number of Tubes
• 5

• Valves / Tubes
• 1R5 1U4 1U4 1U5 3V4

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 117 or 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

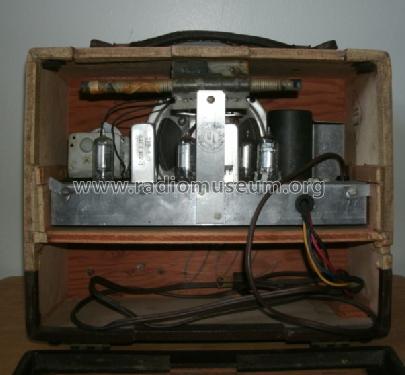

• Model: Coronado RA33-9856D - Gamble-Skogmo, Inc.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 11 x 9.3 x 5.5 inch / 279 x 236 x 140 mm

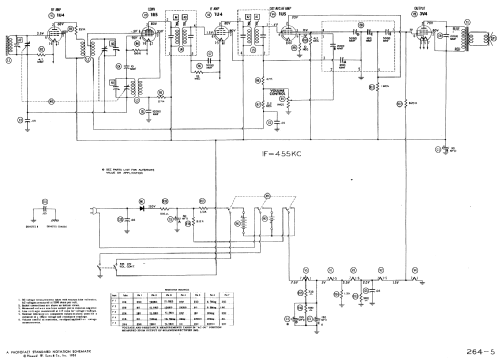

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (264-5)

• Author
• Model page created by Mark Skala. See "Data change" for further contributors.
