Coronado RA44-8274A
Gamble-Skogmo, Inc.; Minneapolis, MN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145456
-
- Brand: Coronado
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- from Radiomuseum.org
- Model: Coronado RA44-8274A - Gamble-Skogmo, Inc.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- The Gamble-Skogmo Model Coronado RA44-8274A is an AC Operated 5 Tube AM Superheterodyne Receiver.
- Literature/Schematics (1)

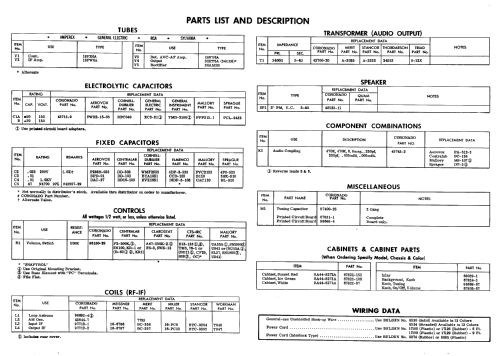

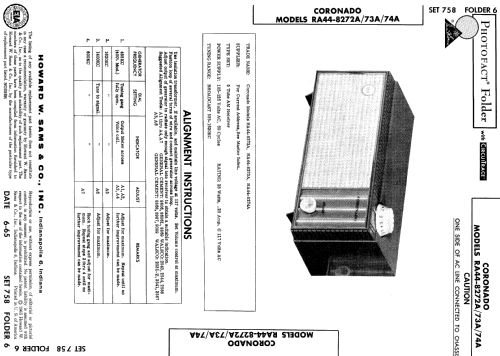

- Photofact Folder, Howard W. SAMS (Date 6-65, Set 758, Folder 6)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
