Coronado RA48-8352A
Gamble-Skogmo, Inc.; Minneapolis, MN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145460
-
- Brand: Coronado

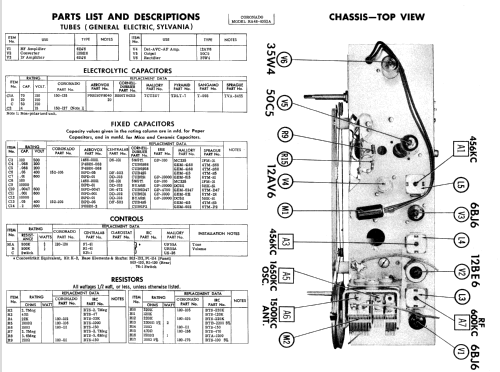

Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: Coronado RA48-8352A - Gamble-Skogmo, Inc.;
- Shape
- Tablemodel, low profile (big size).
- Notes
- The Gamble-Skogmo Model Coronado RA44-8340A is an AC/DC Operated 6 Tube AM Superheterodyne Receiver.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-57, Set 356, Folder 5)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
