Coronado RA48-8357A
Gamble-Skogmo, Inc.; Minneapolis, MN
- Country
- United States of America (USA)
- Manufacturer / Brand
- Gamble-Skogmo, Inc.; Minneapolis, MN
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139271
-
- Brand: Coronado
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Coronado RA48-8357A - Gamble-Skogmo, Inc.;
- Shape
- Tablemodel, with any shape - general.
- Notes
- Sams photofact set 508 folder 7 date 11-60 features the Gamble Skogmo models RA48-8357A and RA48-8357B as the same schematic.
- Literature/Schematics (1)

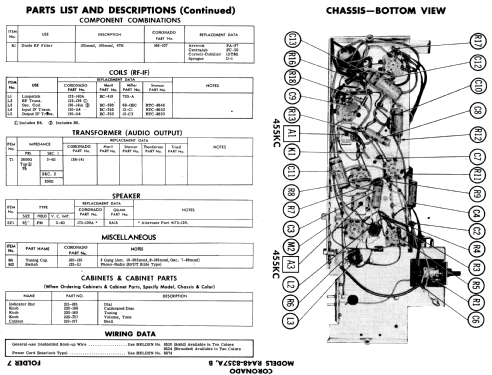

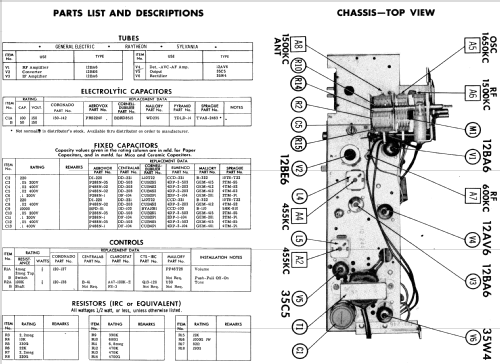

- Photofact Folder, Howard W. SAMS (Set 508 folder 7 date 11-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
