• Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 146063
    • Brand: Coronado

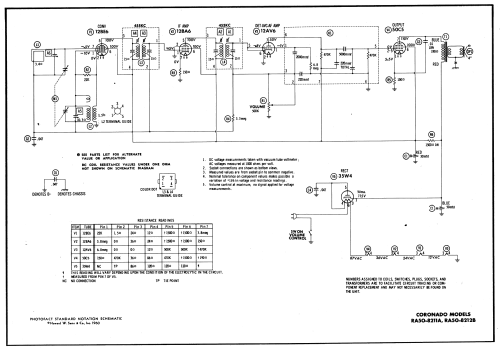

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 110 - 120 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 4 inch = 10.2 cm
  • from Radiomuseum.org
  • Model: Coronado RA50-8212B - Gamble-Skogmo, Inc.;
  • Notes
  • AC - DC operated AM receiver. Sams photofact set 489 folder 9 date 6-60 features the Coronado models RA50-8211A and RA50-8212B as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
