For model Coronado TV1-9330A, Gamble-Skogmo, Inc.; Minneapolis, MN:

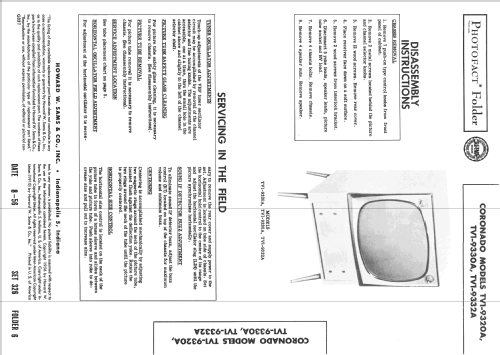

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1956 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 6CB5 6J6 6CB6 6CB6 6AN8 6AN8 6AN8 6BN6 6BK5 6C4 6S4A 12AU7 6CD6G 6AX4GT 1B3GT 21ALP4A
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 115V = 110 -115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Coronado TV1-9330A - Gamble-Skogmo, Inc.;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Coronado model TV1-9330A is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner D211-25205-1 and picture tube 21ALP4A.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 326 Folder 6 dated 8-56)

Model page created by Dirk Taekels. See "Data change" for further contributors.
