Coronado TV2-9422A

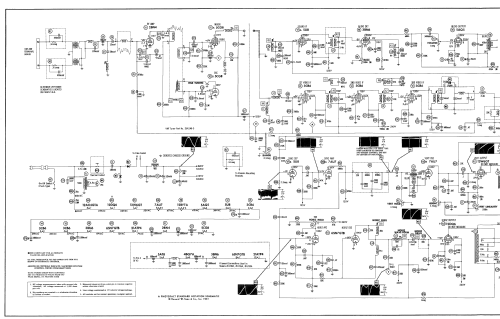

Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473288) Television

Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473289) Television

Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473290) Television

Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473291) Television

Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473292) Television

Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473293) Television

Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473294) Television

Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473295) Television

Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473296) Television

Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473297) Television
Use red slider bar for more.
Coronado TV2-9422A; Gamble-Skogmo, Inc.; (ID = 2473288) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Gamble-Skogmo, Inc.; Minneapolis, MN
Brand

Coronado
Year: 1957 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 17: 2AF4 4BZ7 5U8 3CB6 3CB6 3CB6 12BY7A 5U8 3BN6 5AQ5 7AU7 12W6GT 6SN7GTB 12DQ6 or 12CU6 or 12BQ6GA 12AX4GTA 1B3GT 21ATP4
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Coronado TV2-9422A - Gamble-Skogmo, Inc.;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Coronado model TV2-9422A is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF-UHF tuner 25A1145 and picture tube 21ATP4.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 379 Folder 2 dated 11-57)

Model page created by Dirk Taekels. See "Data change" for further contributors.
