• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81604

• • Brand: Coronado

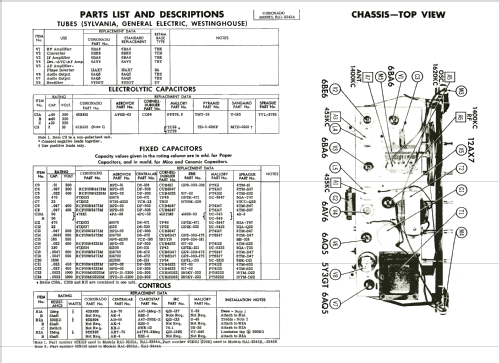

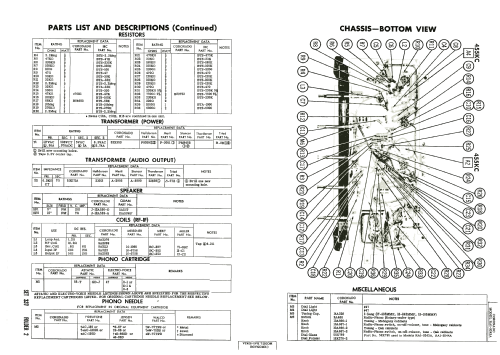

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BA6 6BE6 6BA6 6AV6 12AX7 6AQ5 6AQ5 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Coronado RA1-9246B - Gamble-Skogmo, Inc.;

• Shape
• Tablemodel, with any shape - general.

• Notes
• Oak; Push pull output stage.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 16, 1956

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
