• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82618

• • Brand: Coronado

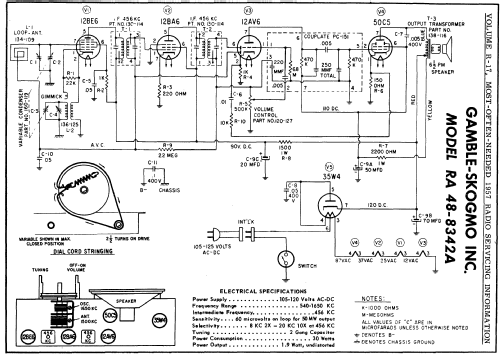

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Coronado RA48-8342A - Gamble-Skogmo, Inc.;

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 17, 1957

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
