• Country
• United States of America (USA)

• Manufacturer / Brand
• Gamble-Skogmo, Inc.; Minneapolis, MN

• Year
• 1941 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 41393

• • Brand: Coronado

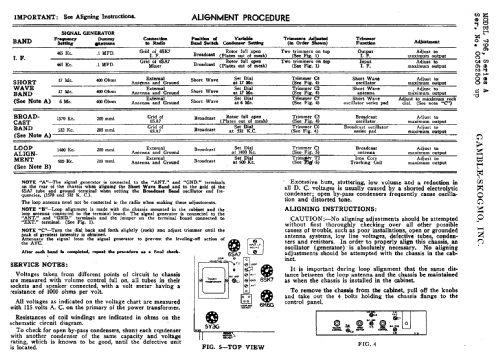

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6J5GT 6K8G 6K8G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm

• from Radiomuseum.org
• Model: 796 Ch= Series A - Gamble-Skogmo, Inc.;

• Notes
• Built in loop antenna.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Other Models

• Here you find 689 models, 322 with images and 618 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Gamble-Skogmo, Inc.; Minneapolis, MN
