3915TVFMP

3915TVFMP ; Garod Radio Corp.; (ID = 1674459) TV Radio

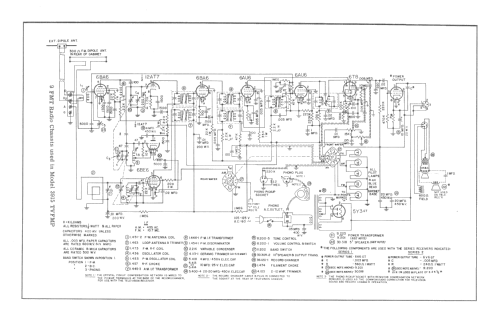

3915TVFMP ; Garod Radio Corp.; (ID = 1674460) TV Radio
Use red slider bar for more.
3915TVFMP ; Garod Radio Corp.; (ID = 1674459) TV Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Garod Radio Corp.; Brooklyn (NY)
Year: 1950 ? Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 36: 6J6 6J6 6J6 6AG5 6BA6 6BA6 6BA6 6AG5 6AL5 6AU6 6K6 6SN7 12JP4 6BA6 6BA6 6AU6 6AL5 6SN7 6AL5 6SN7 6BG6G 1B3GT 5V4G 6SN7 6SN7 6K6 5U4G 5U4G 6BA6 12AT7 6BA6 6AU6 6AU6 6T8 5Y3GT 6BE6
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 3915TVFMP - Garod Radio Corp.; Brooklyn NY
Notes

TV Receiver with 12" b/w CRT combination with AM/FM radio 9 FMT

Channels 2 thru 13



Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Vol. 10/50 95A-6 Set 95A Folder 6)

Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
