5A4 The Thriftee

5A4 The Thriftee ; Garod Radio Corp.; (ID = 95603) Radio

5A4 The Thriftee ; Garod Radio Corp.; (ID = 286069) Radio

5A4 The Thriftee ; Garod Radio Corp.; (ID = 983947) Radio

5A4 The Thriftee ; Garod Radio Corp.; (ID = 983948) Radio

5A4 The Thriftee ; Garod Radio Corp.; (ID = 983950) Radio

5A4 The Thriftee ; Garod Radio Corp.; (ID = 983951) Radio
5A4 The Thriftee ; Garod Radio Corp.; (ID = 1937382) Radio 5A4 The Thriftee ; Garod Radio Corp.; (ID = 145606) Radio
5A4 The Thriftee ; Garod Radio Corp.; (ID = 145607) Radio 5A4 The Thriftee ; Garod Radio Corp.; (ID = 145608) Radio
5A4 The Thriftee ; Garod Radio Corp.; (ID = 153761) Radio 5A4 The Thriftee ; Garod Radio Corp.; (ID = 153762) Radio
5A4 The Thriftee ; Garod Radio Corp.; (ID = 155226) Radio 5A4 The Thriftee ; Garod Radio Corp.; (ID = 983945) Radio
5A4 The Thriftee ; Garod Radio Corp.; (ID = 1937381) Radio 5A4 The Thriftee ; Garod Radio Corp.; (ID = 1937383) Radio
Use red slider bar for more.
5A4 The Thriftee ; Garod Radio Corp.; (ID = 1937382) Radio
Garod Radio Corp.;: 5A4 The Thriftee [Radio] ID = 1937382 1200x1106
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5A4 The Thriftee, Garod Radio Corp.; Brooklyn (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Garod Radio Corp.; Brooklyn (NY)
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 14A7 12SQ7 50L6 35Z5
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 5A4 The Thriftee - Garod Radio Corp.; Brooklyn NY
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 265 x 180 x 150 mm / 10.4 x 7.1 x 5.9 inch
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

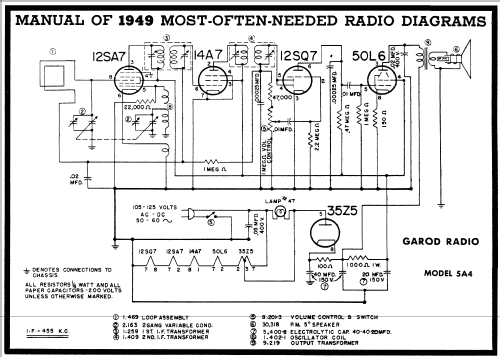

Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Beitman Radio Diagrams, Vol. 09, 1949

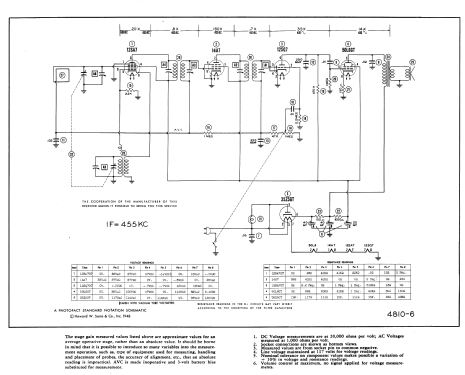

Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 40, Date 5/48, Folder 4810-6)


All listed radios etc. from Garod Radio Corp.; Brooklyn (NY)
Here you find 377 models, 94 with images and 345 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
