62B ; Garod Radio Corp.; (ID = 1131190) Radio
Garod Radio Corp.;: 62B [Radio] ID = 1131190 710x499
Select picture or schematic to display from thumbnails on the right and click for download.
For model 62B, Garod Radio Corp.; Brooklyn (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Garod Radio Corp.; Brooklyn (NY)
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BJ6 12BE6 6BJ6 12AT6 50B5 35W4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 62B - Garod Radio Corp.; Brooklyn NY
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Notes Operation with 220-240V AC/DC possible.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

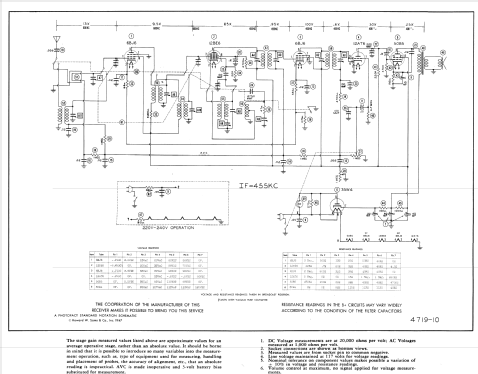

Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
