The Commander 6AU-1

The Commander 6AU-1; Garod Radio Corp.; (ID = 386891) Radio

The Commander 6AU-1; Garod Radio Corp.; (ID = 497438) Radio

The Commander 6AU-1; Garod Radio Corp.; (ID = 506707) Radio

The Commander 6AU-1; Garod Radio Corp.; (ID = 506708) Radio

The Commander 6AU-1; Garod Radio Corp.; (ID = 506709) Radio

The Commander 6AU-1; Garod Radio Corp.; (ID = 506711) Radio
The Commander 6AU-1; Garod Radio Corp.; (ID = 251650) Radio The Commander 6AU-1; Garod Radio Corp.; (ID = 129118) Radio
The Commander 6AU-1; Garod Radio Corp.; (ID = 129120) Radio The Commander 6AU-1; Garod Radio Corp.; (ID = 129121) Radio
The Commander 6AU-1; Garod Radio Corp.; (ID = 129119) Radio The Commander 6AU-1; Garod Radio Corp.; (ID = 251651) Radio
The Commander 6AU-1; Garod Radio Corp.; (ID = 251652) Radio The Commander 6AU-1; Garod Radio Corp.; (ID = 266875) Radio
The Commander 6AU-1; Garod Radio Corp.; (ID = 266876) Radio The Commander 6AU-1; Garod Radio Corp.; (ID = 1076826) Radio
Use red slider bar for more.
The Commander 6AU-1; Garod Radio Corp.; (ID = 251650) Radio
Garod Radio Corp.;: The Commander 6AU-1 [Radio] ID = 251650 933x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model The Commander 6AU-1, Garod Radio Corp.; Brooklyn (NY):
Ebay Nr. 170024241372 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Garod Radio Corp.; Brooklyn (NY)
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SS7 12SA7 6SS7 12SQ7 50L6 35Z5
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: The Commander 6AU-1 - Garod Radio Corp.; Brooklyn NY
Material Catalin (a brand name for a thermosetting polymer popular in the 1930s and 1940s - a phenol formaldehyde resin - like Bakelite, but a two-stage process with a lot of work afterwards).
Shape Tablemodel, low profile (big size).
Notes Built in loop antenna. Two-Tone "Catalin" Plastic Combinations.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

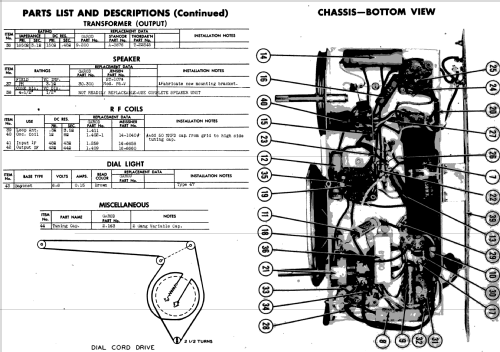

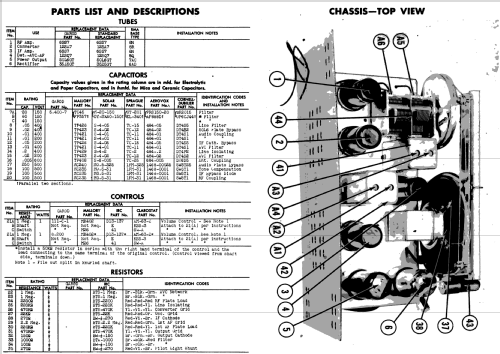

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Folder 465-29 date 10-46)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (April 1946 page 9. January 1947 page 19.)
Literature/Schematics (3) Table Top Radios Vol. 1 Stein 98 (page 83.)
Literature/Schematics (4) Plastic Radios - The Antique Radio Collectors' Source Book


All listed radios etc. from Garod Radio Corp.; Brooklyn (NY)
Here you find 378 models, 95 with images and 345 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
