4A-1B

4A-1B ; Garod Canada; where? (ID = 774870) Radio

4A-1B ; Garod Canada; where? (ID = 774871) Radio
4A-1B ; Garod Canada; where? (ID = 1288325) Radio 4A-1B ; Garod Canada; where? (ID = 1288326) Radio
4A-1B ; Garod Canada; where? (ID = 1288327) Radio 4A-1B ; Garod Canada; where? (ID = 1288328) Radio
Use red slider bar for more.
4A-1B ; Garod Canada; where? (ID = 1288325) Radio
Garod Canada; where?: 4A-1B [Radio] ID = 1288325 933x581
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4A-1B, Garod Canada; (where?):
By courtesy of guest Levi Moerschbacher, Calgary, Alberta, Canada.

Country:  Canada
Manufacturer / Brand:  Garod Canada; (where?)
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3S4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1,5 & 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
Power out
from Radiomuseum.org Model: 4A-1B - Garod Canada; where?
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 167 x 108 x 89 mm / 6.6 x 4.3 x 3.5 inch
Notes

Built-in loop antenna. See also "Garod Radio Corp. - USA", but this model is made by Brand and Millen Ltd., Long Branch Ontario, Canada.

Metal housing,front and back cover embossed plastic croco design,radio cover shiny plastic with golden metallic background.

1 1/2 V battery size "D", 67 1/2 V battery Eveready No.467.



Net weight (2.2 lb = 1 kg) 3 lb 0 oz (3 lb) / 1.362 kg

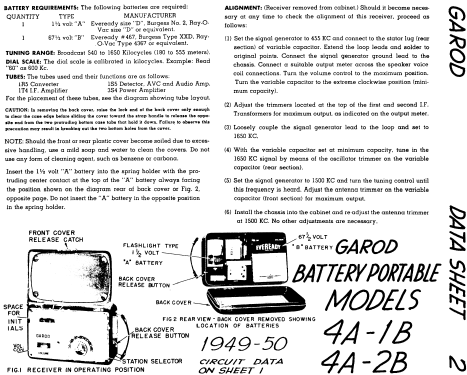

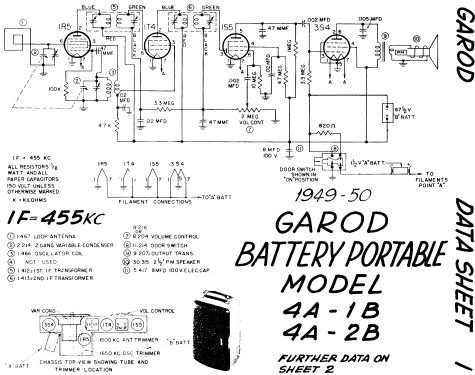

Circuit diagram reference Radio College of Canada
Mentioned in Garod Pages 1, 2

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
