4A-2B
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1949/1950 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: 1R5 1T4 1S5 3S4 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 1,5 & 67,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: 4A-2B - Garod Canada; where? |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Notes | Built-in loop antenna.. See also "Garod Radio Corp. - USA". |

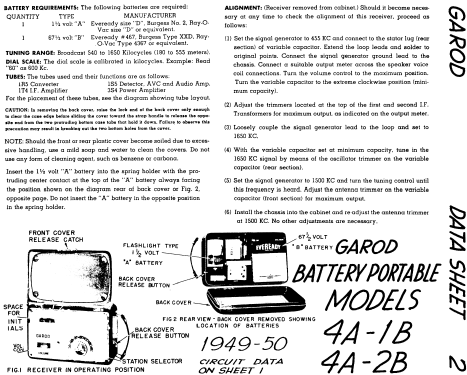

| Circuit diagram reference | Radio College of Canada |
| Mentioned in | Garod Pages 1, 2 |
Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
