Country:  Canada
Manufacturer / Brand:  Garod Canada; (where?)
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SK7 6SQ7 6V6G 6V6G 5Y4G
Main principle Superheterodyne (common); ZF/IF 456 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out
from Model: 618 - Garod Canada; where?
Shape Console with any shape - in general
Notes Built-in loop antenna; push-pull af output.

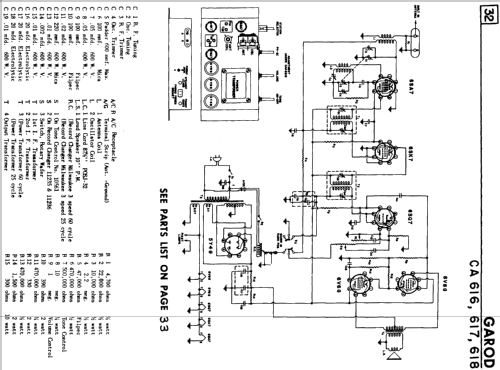

Circuit diagram reference Radio College of Canada
Mentioned in Garod Suppl. Pages 32, 33

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
