R.C. 90 (RC90) A

Garrard Eng. & Mfg. Co. Ltd.; Swindon, England

Data
Forum
Pictures
Collections

  • Year
  • 1955 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 307083

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 100-130/200-250 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: R.C. 90 [A] - Garrard Eng. & Mfg. Co. Ltd.;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 15.5 x 9.625 x 13.25 inch / 394 x 244 x 337 mm
  • Notes

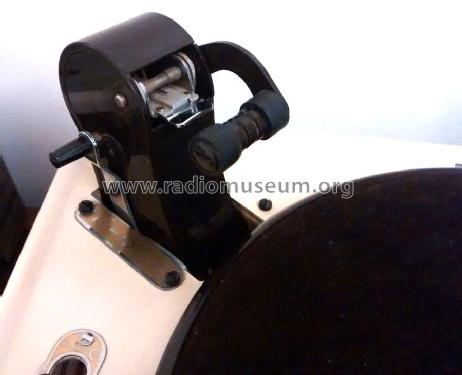

  • A three speed Automatic Record Changer similar to the Garrard RC80 model with additional manual operation and ± 2.5% speed adjustment. Capacity 10 records of one size, 10 or 12 inch at 78rpm, 7, 10 or 12 inch at 33⅓ rpm, and 7 inch at 45 rpm. Supplied with three spindles, one for large hole 45rpm records, a stepped sloping spindle for all other types of records and a short spindle for playing records manually, plus an adaptor for the manual playing of large hole 45rpm records . With a die-cast aluminium pickup arm with 3 pin plug-in feature, complete with a plug-in headshell. Also available is the Garrard MPM2 multi-purpose plug-in pickup case together with accessories which enable the fitting of a wide range of cartridges. Suitable for use on 100-130 volts and 200-250 volts AC at either 50 or 60 Hz according to the motor pulley fitted.

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Instructions for Garrard model R.C. 90 Automatic Record Changer)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
